Digital 8x8 matrix router

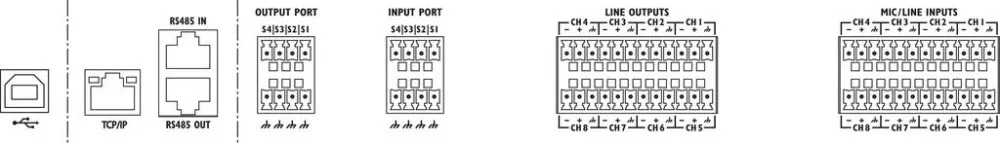

8 inputs and 8 outputs (plug-in screw terminals, switchable mic/line, balanced)
+48 V phantom power
User-defined routing of the inputs to the outputs
The level of each routed input can be adjusted per assigned output (individual output mix)
Up to 32 devices can be managed via software
A/D converter: 4 x 24 bits, D/A converter: 1 x 24 bits
Extensive signal processing and monitoring, e.g. frequency shift feedback eliminator, parametric 5-band equalizer with peak and shelving filters, variable low-pass/high-pass filters - optionally with Bessel, Butterworth or Linkwitz-Riley characteristics, RMS compressor, peak limiter, selectable phase, delay
Integrated auto mixer
6-fold LED status cluster for each channel
6 user presets can be accessed directly
Link feature for simultaneously changing the settings of several channels
Stereo mode for the channels 1/2, 3/4, 5/6 and 7/8

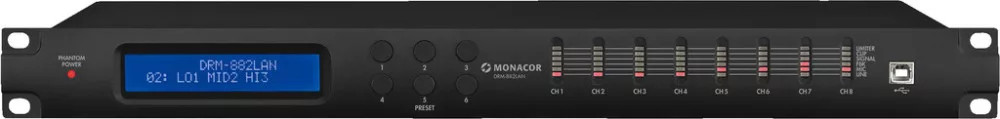

Dot matrix display with 2 x 24 characters
Remote control via USB, RS-485 or TCP/IP LAN
Real-time remote control via software
Lock mode for front panel control
Individual room control via optional wall-mounted remote control panel DRM-882WP or DRM-882WPX
Robust steel housing with aluminium front panel
482 mm (19") rack installation, 1 RU

Input (data for each channel):

Gain control with 0 dB bypass function
Noise gate
Mic/line switching
Selectable priority circuit
Parametric 3-band equalizer (peak, low-pass shelving, high-pass shelving)
Frequency shift feedback eliminator
Selectable phase (180°)

Output (data per channel):

Low-pass filter/high-pass filter with Butterworth, Linkwitz-Riley and Bessel characteristics (to -24 dB/oct.). Even higher slopes possible in combination with equalizer
Parametric 5-band equalizer with peak or low-pass/high-pass shelving filters
Peak limiter and RMS compressor with a ratio of up to 32:1 and continuously adjustable soft/hard knee characteristics. Threshold: 18 dBu to -12 dBu, release time: 0.1-3 s, attack time: 5-200 ms
Peak limiter and RMS compressor with bypass function
Switchable delay between time (ms) and distance (m): 380.998 ms max. in steps of 21 µsec or 129.539 m max. in steps of 6.8 mm
Selectable phase (180°)
Gain control
